Description

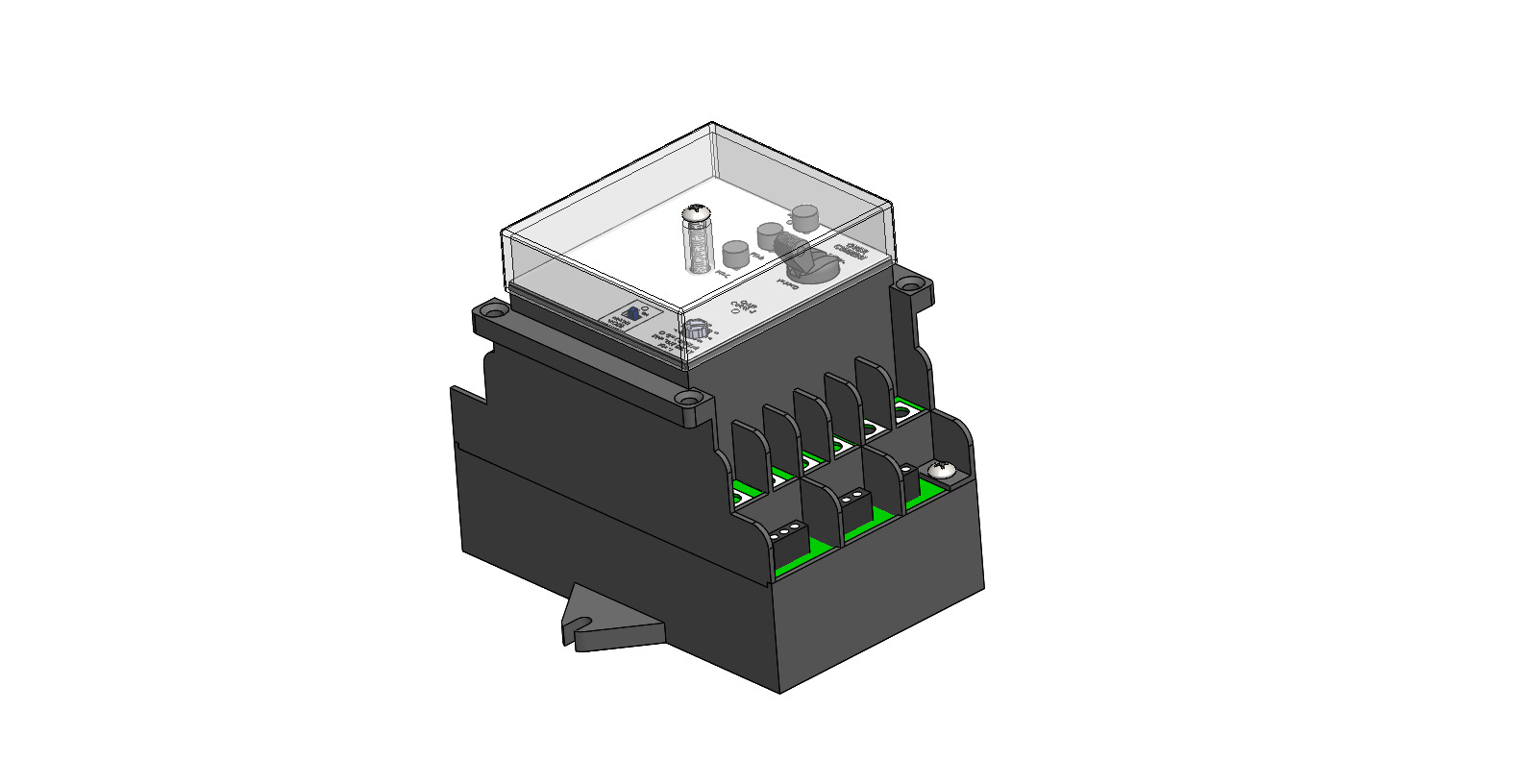

ARC Flash – Overcurrent (w/o Ground Fault)
Application: Arc Reduction and Overcurrent Relay
Switch Ratings: 400A, 600A, 800A,1200A,1600A, 2000A, 2500A, 3000A, 3500A, 4000A, 5000A, 6000A
Input Power Option: 120 Vac
Frequency: 50/60 Hz
Input Withstand: 200,000 Amperes RMS for 3 cycles, 50/60 Hz
Ambient Temperature Range: -30 Deg C to 60 Deg C
Designed for electrical equipment protection, not specifically for personnel protection.
Arc Reduction & Overcurrent Relay Section: The Arc Reduction/Overcurrent section is designed to minimize damage due to overcurrent/Arc Flash events.
The Arc Flash/Overcurrent section is not designed to prevent the condition, but to minimize the incident energy release and damage due to current spikes.
The CT/Sensors are sold separately and produced under Electromagnetic Industries Instrument Transformers UL File E238872. Use of any other CTs void the warranty of this product and may result in damage to equipment and the relay.
