Part Numbers
| Part Number | Ratio |
|---|---|
| 114-500 | 50:5 |
| 114-600 | 60:5 |
| 114-750 | 75:5 |
| 114-800 | 80:5 |
| 114-101 | 100:5 |
| 114-121 | 120:5 |
| 114-151 | 150:5 |
| 114-201 | 200:5 |
| 114-251 | 250:5 |
| 114-301 | 300:5 |
| 114-401 | 400:5 |
| 114-501 | 500:5 |
| 114-601 | 600:5 |
| 114-701 | 700:5 |
| 114-751 | 750:5 |
| 114-801 | 800:5 |
| 114-102 | 1000:5 |
| 114-122 | 1200:5 |
| 114-132 | 1300:5 |
| 114-142 | 1400:5 |
| 114-152 | 1500:5 |
| 114-162 | 1600:5 |
| 114-500-1 | 50:1 |
| 114-600-1 | 60:1 |
| 114-750-1 | 75:1 |
| 114-800-1 | 80:1 |
| 114-101-1 | 100:1 |
| 114-121-1 | 120:1 |
| 114-151-1 | 150:1 |
| 114-201-1 | 200:1 |
| 114-251-1 | 250:1 |
| 114-301-1 | 300:1 |
| 114-401-1 | 400:1 |
| 114-501-1 | 500:1 |
| 114-601-1 | 600:1 |
| 114-701-1 | 700:1 |
| 114-751-1 | 750:1 |
| 114-801-1 | 800:1 |
| 114-102-1 | 1000:1 |
| 114-122-1 | 1200:1 |
| 114-132-1 | 1300:1 |
| 114-142-1 | 1400:1 |
| 114-152-1 | 1500:1 |
| 114-162-1 | 1600:1 |

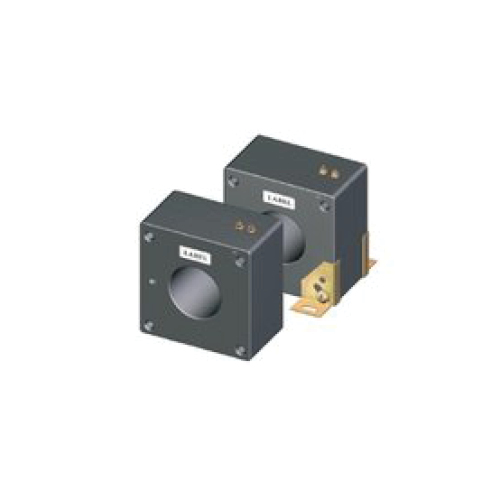

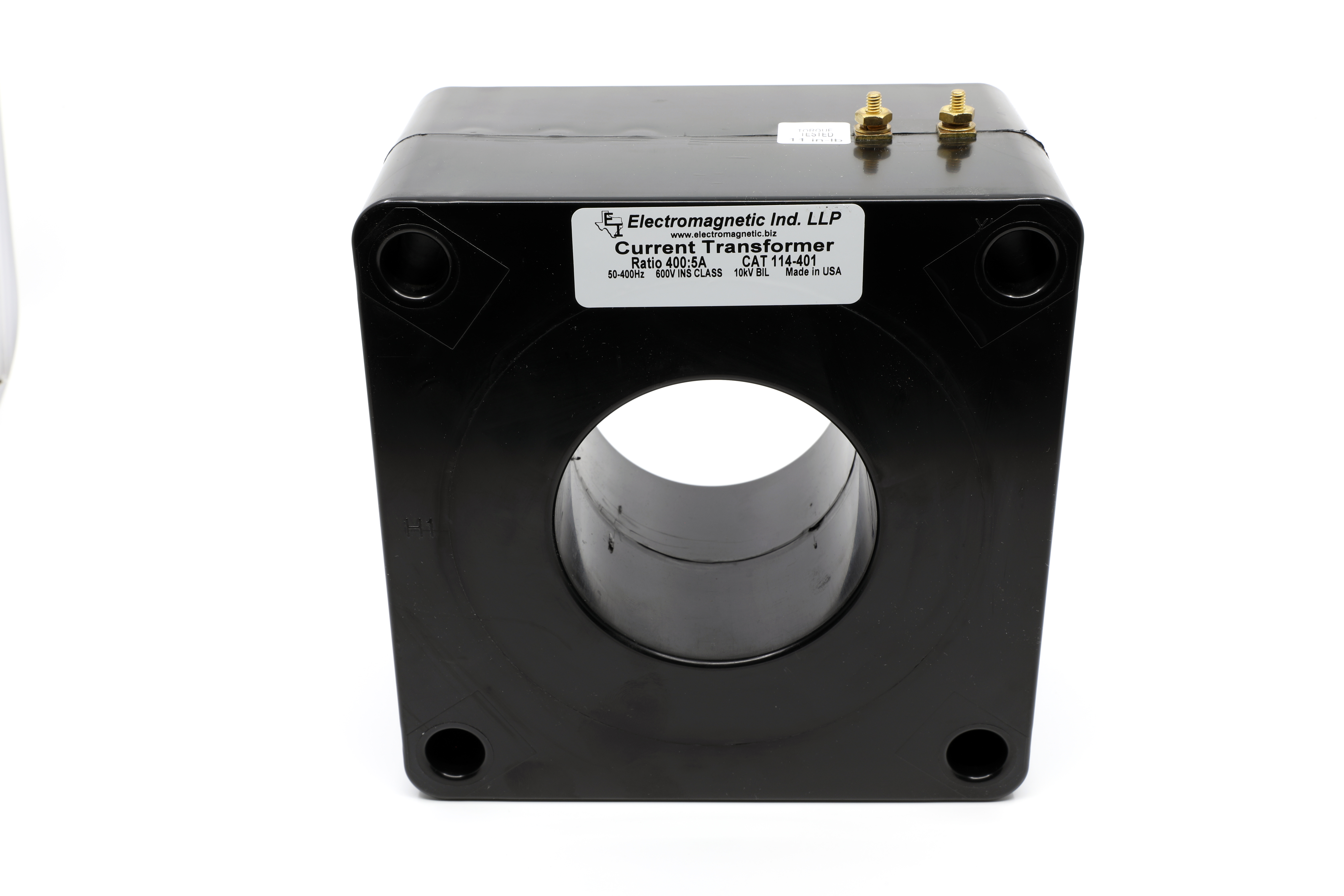

Toroidal Current Transformer Model 114 (3.25" dia.)
Toroidal Current Transformers designed for use with ammeters, wattmeters, cross current compensation, or relay driver applications. All models have an insulation level of 600V, 10 kV BIL Full Wave, 50–400 Hz and are CSA and UL Recognized.
| Ratio | 50:5 to 1600:5 |
|---|---|
| Window Size | 3.25" Diameter |
| Application | Relay and Metering |
| Frequency | 50–400 Hz |
| Insulation Level | 600V, 10kV BIL Full Wave |
| Standards | CSA 66.1-06, CSA 66.2-06, IEEE C57.13, UL 506 |
| Weight | Approx. 22 lbs. |
- Terminals are brass studs No. 8-32 UNC with one flat washer, one lock washer and one nut each.
- Other ratios available on request.
- Mounting Bracket Kits sold separately (P/N 112A00018).
